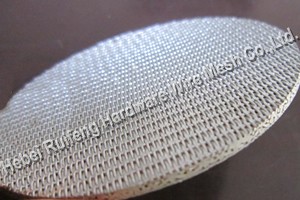

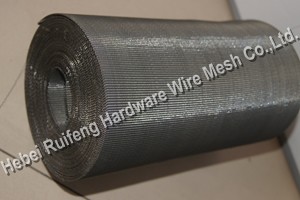

Dutch Wire Mesh
Material:Stainless steel wire, Nickel wire, Brass wire.
Uses:Used in gas , liquid filter separated from other medium to spend mainly. Used in the spaceflight , petroleum , chemical industry; According to the mechanical trade JB/T5979-92 standard organization' s production, this standard consults and adopts international standard IS04783/1-1990.

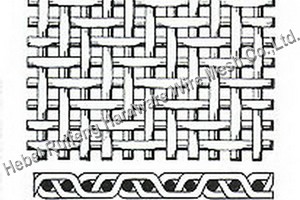

Weave the method: Have plain weave weave , twill weave , bamboo flower weave , contrast weaves four kinds of methods .
| Plain Weave Brass Wire Netting | ||||
| Type | The eye counting | Silk foot-path（MM） | Weight（KG/M2） | Filtering value |
| 28# | 7*50 | 0.7*0.54 | 4.5 | 315 |
| 33# | 8*60 | 0.55*0.45 | 3.64 | 280 |
| 40# | 10*72 | 0.5*0.38 | 3.22 | 250 |
| 50# | 12.5*80 | 0.45*0.34 | 2.94 | 200 |
| 60# | 15*88 | 0.43*0.31 | 2.81 | 160 |
| 70# | 18*100 | 0.4*0.275 | 2.61 | 140 |
| 80# | 20*110 | 0.35*0.25 | 2.32 | 125 |
| 100# | 25*140 | 0.3*0.2 | 1.96 | 100 |
| 120# | 30*150 | 0.25*0.18 | 1.68 | 80 |
| 140# | 35*180 | 0.23*0.15 | 1.47 | 70 |
| 160# | 40*200 | 0.2*0.14 | 1.3 | 63 |
| 180# | 45*220 | 0.18*0.125 | 1.22 | 56 |
| 200#1 | 50*250 | 0.15*0.11 | 0.95 | 50 |
| 200#2 | 50*280 | 0.14*0.10 | 0.84 | 45 |
| 240# | 60*300 | 0.14*0.09 | 0.8 | 40 |
| 260# | 65*320 | 0.12*0.085 | 0.75 | 36 |
| 280#1 | 70*350 | 0.11*0.08 | 0.7 | 32 |
| 280#2 | 70*400 | 0.11*0.07 | 0.68 | 31 |
| 300# | 75*350 | 0.11*0.08 | 0.78 | 30 |
| Twill Brass Wire Netting | ||||
| Type | The eye counting | Silk foot-path（MM） | Weight（KG/M2） | Filtering value |
| 320(1) | 80*680 | 0.11*0.08 | 1.27 | 28 |
| 320(2) | 80*780 | 0.11*0.07 | 1.2 | 27 |
| 360 | 90*780 | 0.10*0.07 | 1.18 | 25 |
| 400(1) | 100*900 | 0.10*0.60 | 1.06 | 22 |
| 400(2) | 100*780 | 0.10*0.70 | 1.21 | 24 |
| 500 | 125*1100 | 0.08*0.05 | 0.88 | 18 |
| 600 | 150*1200 | 0.07*0.045 | 0.8 | 16 |
| 630(1) | 160*1400 | 0.063*0.04 | 0.71 | 15 |
| 630(2) | 160*1500 | 0.063*0.035 | 0.61 | 14 |
| 700 | 180*1600 | 0.06*0.033 | 0.59 | 13 |
| 795 | 200*/800 | 0.05*0.03 | 0.53 | 11 |
| 850 | 210*1800 | 0.05*0.03 | 0.563 | 10 |
| 1000 | 250*2000 | 0.04*0.027 | 0.46 | 8 |
| 1125 | 280*2200 | 0.035*0.025 | 0.42 | 6.3 |
| 1250 | 320*2300 | 0.033*0.024 | 0.41 | 5 |
| 1280 | 325*2500 | 0.03*0.022 | 0.37 | 4 |
