    Sintered Mesh

    Specifications:

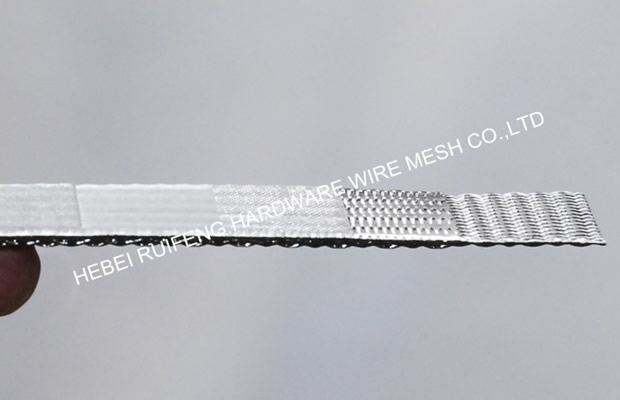

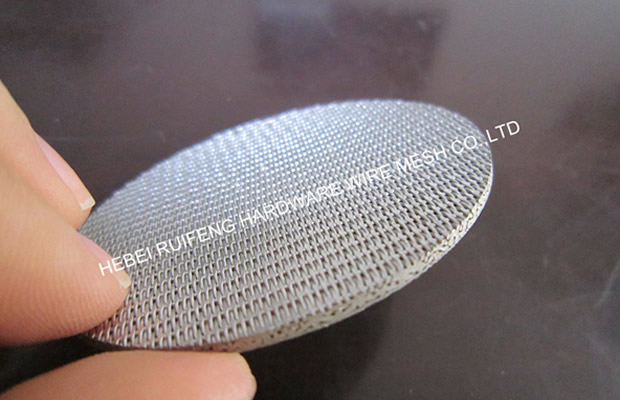

    Stainless Steel Sintered Wire Mesh
    1.material: sus 316
    2.thickness:1.7mm or 2.0mm
    3.standard size:500mmx1000mm, 600mmx1200mm

    Summary
    There are could be 2-layer to 6-layer different useless wire mesh made from stainless steel are brought together as per the different combination. They are sintered together through vacuum sinter,compression and rolling and made into a kind of porous material.

    Characterictics:
    ·Large areas , From 1micron to 100micron it all has the well filtration performance .
    ·Steady filter rating, As to the two protective layers and sinter arts, the mesh of the filter layer is not easy to change.
    ·High mechanical strength. Excellent resistance to pressure ang high mechanical strength due to the fourth and fifth layers reinforced.
    ·Washability.Easy to wash, especially back washing owing to the surface.
    ·Heat resistance. Heat resistant up to 480°C.
    ·Corrosion resistance. Corrosion resistance as to a result of adopting SUS316L.
    ·Tractability.Suit to cut,punching,warp,tension and jointing.

    Norminal
    Filter rating
    (micron)

    Protective
    Layer

    Control Layer

    Dispersion
    Layer

    Reinforcing
    Layer

    Reinforcing
    Layer

    Thickness
    mm

    A.P. at 1000Pa

    Mean B.P.P
    (mmH2O)



    Porosity
    (%)

    1

    200

    400×3000

    200

    12×64

    64×12

    1.7

    1.81

    360~600

    Five-layer
    Sintered wire mesh
    (8.4)

    Six-layer
    Sintered wire mesh
    (14.4)

    About 40%

    2

    100

    325×2300

    100

    12×64

    64×12

    1.7

    2.35

    300~590

    5

    100

    200×1400

    100

    12×64

    64×12

    1.7

    2.42

    260~550

    10

    100

    165×1400

    100

    12×64

    64×12

    1.7

    3.00

    220~500

    15

    100

    165×1200

    100

    12×64

    64×12

    1.7

    3.41

    200~480

    20

    100

    165×800

    100

    12×64

    64×12

    1.7

    4.50

    170~450

    25

    100

    165×600

    100

    12×64

    64×12

    1.7

    6.12

    150~410

    30

    100

    400

    100

    12×64

    64×12

    1.7

    6.86

    120~390

    40

    100

    325

    100

    12×64

    64×12

    1.7

    7.10

    100~350

    50

    100

    250

    100

    12×64

    64×12

    1.7

    8.41

    90~300

    75

    100

    200

    100

    12×64

    64×12

    1.7

    8.70

    80~250

    100

    100

    150

    100

    12×64

    64×12

    1.7

    9.10

    70~190

    150

    50+100+50+30+30+100+50

    2.0

    25.00

    50~150

    200

    40+80+40+20+40+80+40

    2.0

    26.00
